2006 On Going Project:

For SMS-Demag Ltd (Canada)  at TPCO  Tianjin, China

Continuous Grinding & Polishing Line



SMS-Demag Ltd

Line Specification:

Materials:

Stainless Steel
  Max Min
Gauge: 5.00 mm 0.50 mm (Polish Mode)
Width: 1650 mm 610 mm
Line Speed: 30 m/min (6 Grinders), Set at 20 m/min with 3 grinders -
Entry Coil Weight: 30 T 0.55 T
Exit Coil Weight: 30 T 0.55 T
Yield Strength:
Shear Strength:
Controls By: Siemens Canada & Powerhouse Controls

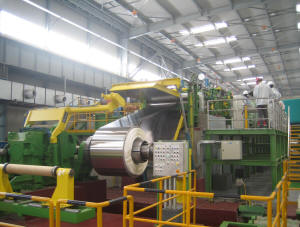

Single Mandrel Entry Section with Paper Rewinder.

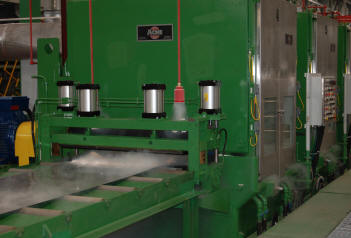

Grinder - Fire Protection System being tested

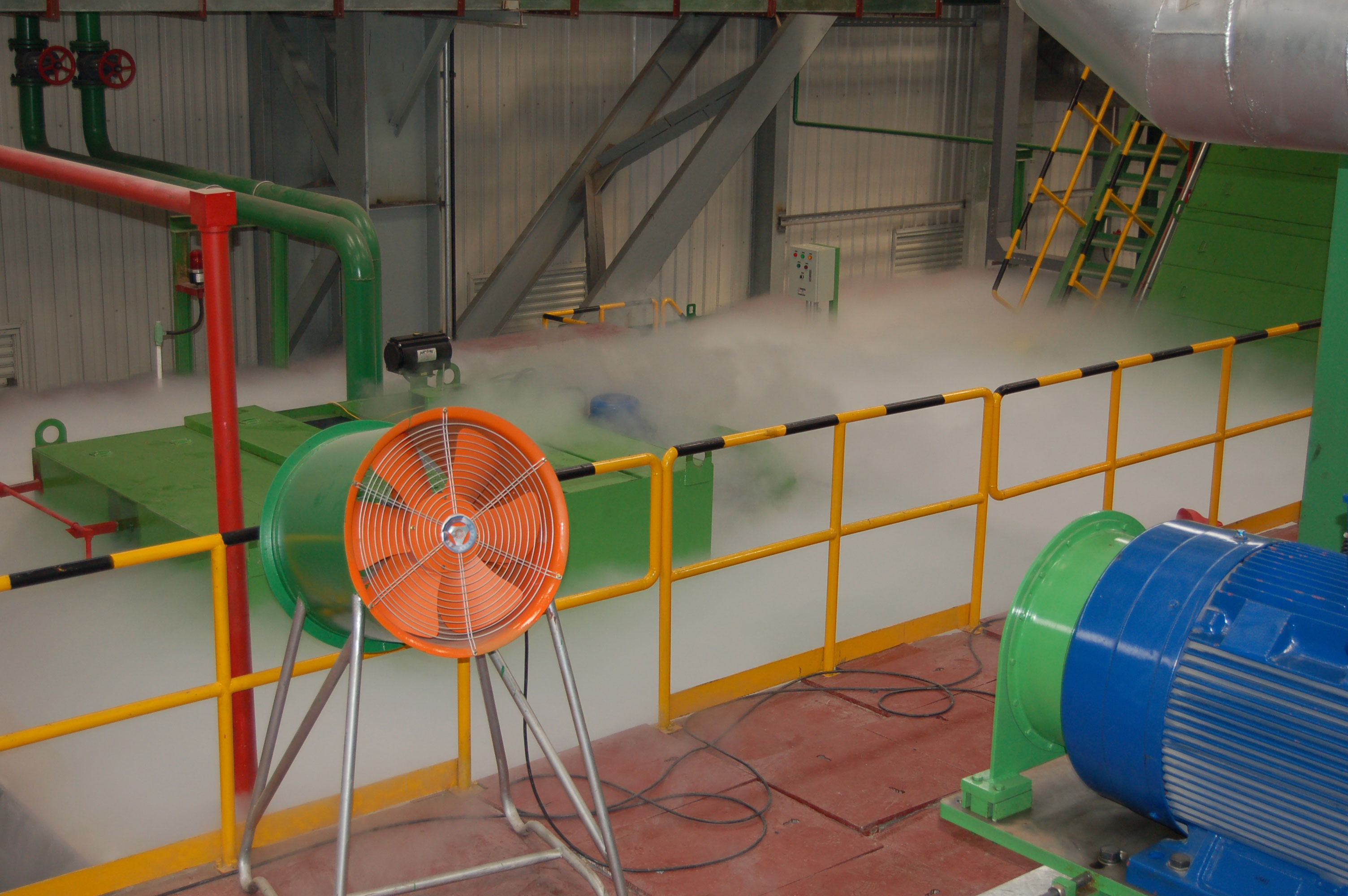

Grinder Coolant System - Fire Protection System being tested

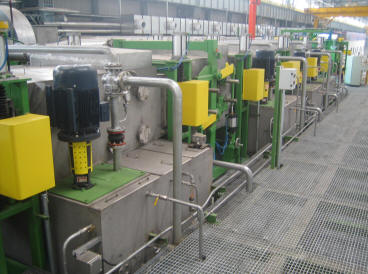

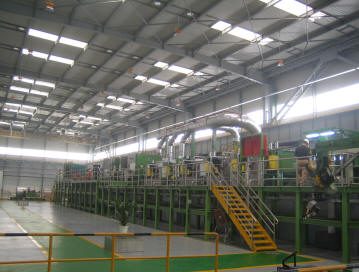

The Operator Side of the Line                                    Cleaning section

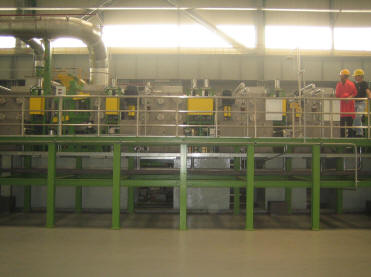

2 Cleaning and 2 Rinse Tanks

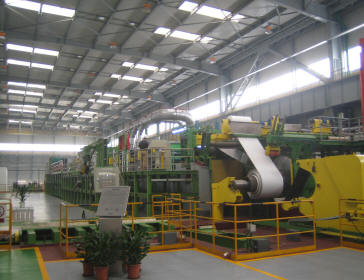

Single Tension Reel: Recoiler with Belt Wrapper and dual paper unwinders
Time to celebrate: May 2006
Mr. Bin Hu (Translator), Mr. Chris Tynan (Consultant) Mr. Aijun Wang ( chief Operator), Mr. Wei Li, Mr. Yan Wu,

Mr. Dongyi Zhang, Mr. Hang Liu, Mr. Yan Wu, Mr. Tianzhong Wu,  ( chief Machanic)
